الفرق بين B-tree و Bitmap


omar-alreyati

Recommended Posts

ما الفرق بين الاندكس كما في الجدول الاتي
B-tree
Suitable for high-cardinality
columns

Updates on keys relatively
inexpensive

Inefficient for queries
using OR predicates

Useful for OLTP




Bitmap

Suitable for low-cardinality
columns

Updates to key columns very
expensive

Efficient for queries
using OR predicates

Useful for data warehousing


راجياً منكم الرد بالفروقات في أسرع وقت

رابط هذا التعليق
شارك

The Oracle b-tree index

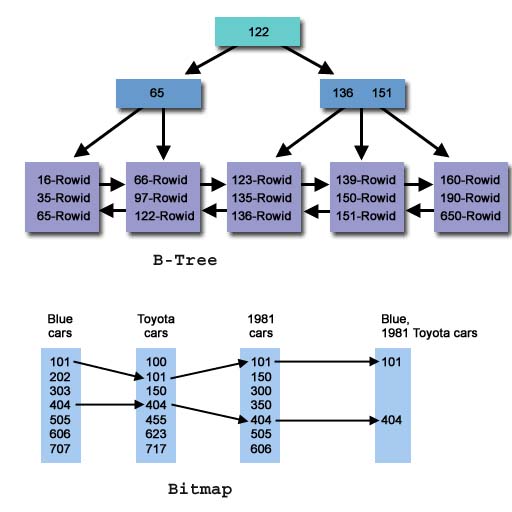

The oldest and most popular type of Oracle indexing is a standard b-tree index, which excels at servicing simple queries. The b-tree index was introduced in the earliest releases of Oracle and remains widely used with Oracle9i (see Figure A). B-tree indexes are used to avoid large sorting operations. For example, a SQL query requiring 10,000 rows to be presented in sorted order will often use a b-tree index to avoid the very large sort required to deliver the data to the end user.

توجد صورة للشرح

Oracle offers several options when creating an index using the default b-tree structure. It allows you to index on multiple columns (concatenated indexes) to improve access speeds. Also, it allows for individual columns to be sorted in different orders. For example, we could create a b-tree index on a column called last_name in ascending order and have a second column within the index that displays the salary column in descending order. Listing A presents the SQL.


Listing A


create index
name_salary_idx
on
person
(
last_name asc,
salary desc);





While b-tree indexes are great for simple queries, they are not very good for the following situations:


Low-cardinality columns—columns with less than 200 distinct values do not have the selectivity required in order to benefit from standard b-tree index structures.
No support for SQL functions—B-tree indexes are not able to support SQL queries using Oracle's built-in functions. Oracle9i provides a variety of built-in functions that allow SQL statements to query on a piece of an indexed column or on any one of a number of transformations against the indexed column.

Prior to Oracle9i, the Oracle SQL optimizer had to perform time-consuming long-table, full-table scans due to these shortcomings. Consequently, it was no surprise when Oracle introduced more robust types of indexing structures.

Bitmapped indexes

Oracle bitmap indexes are very different from standard b-tree indexes. In bitmap structures, a two-dimensional array is created with one column for every row in the table being indexed. Each column represents a distinct value within the bitmapped index. This two-dimensional array represents each value within the index multiplied by the number of rows in the table. At row retrieval time, Oracle decompresses the bitmap into the RAM data buffers so it can be rapidly scanned for matching values. These matching values are delivered to Oracle in the form of a Row-ID list, and these Row-ID values may directly access the required information.

The real benefit of bitmapped indexing occurs when one table includes multiple bitmapped indexes. Each individual column may have low cardinality. The creation of multiple bitmapped indexes provides a very powerful method for rapidly answering difficult SQL queries.

For example, assume there is a motor vehicle database with numerous low-cardinality columns such as car_color, car_make, car_model, and car_year. Each column contains less than 100 distinct values by themselves, and a b-tree index would be fairly useless in a database of 20 million vehicles. However, combining these indexes together in a query can provide blistering response times a lot faster than the traditional method of reading each one of the 20 million rows in the base table. For example, assume we wanted to find old blue Toyota Corollas manufactured in 1981 (see Listing :wub:.


Listing B


select
license_plat_nbr
from
vehicle
where
color = ‘blue’
and
make = ‘toyota’
and
year = 1981;





Oracle uses a specialized optimizer method called a bitmapped index merge to service this query. In a bitmapped index merge, each Row-ID, or RID, list is built independently by using the bitmaps, and a special merge routine is used in order to compare the RID lists and find the intersecting values. Using this methodology, Oracle can provide subsecond response time when working against multiple low-cardinality columns (see Figure :(.


توجد صورة للشرح


تم تعديل بواسطة Admin05
رابط هذا التعليق
شارك

استخدامات اخرى
Function-based indexes

One of the most important advances in Oracle indexing is the introduction of function-based indexing. Function-based indexes allow creation of indexes on expressions, internal functions, and user-written functions in PL/SQL and Java. Function-based indexes ensure that the Oracle designer is able to use an index for its query. Prior to Oracle8, the use of a built-in function would not be able to match the performance of an index. Consequently, Oracle would perform the dreaded full-table scan. Examples of SQL with function-based queries might include the following:

Select * from customer where substr(cust_name,1,4) = ‘BURL’;
Select * from customer where to_char(order_date,’MM’) = ’01;
Select * from customer where upper(cust_name) = ‘JONES’;
Select * from customer where initcap(first_name) = ‘Mike’;

In Oracle9i, Oracle always interrogates the where clause of the SQL statement to see if a matching index exists. By using function-based indexes, the Oracle designer can create a matching index that exactly matches the predicates within the SQL where clause. This ensures that the query is retrieved with a minimal amount of disk I/O and the fastest possible speed.

Index-only tables

Beginning with Oracle8, Oracle recognized that a table with an index on every column did not require table rows. In other words, Oracle recognized that by using a special table-access method called an index fast full scan, the index could be queried without actually touching the data itself.

Oracle codified this idea with its use of index-only table (IOT) structure. When using an IOT, Oracle does not create the actual table but instead keeps all of the required information inside the Oracle index. At query time, the Oracle SQL optimizer recognizes that all of the values necessary to service the query exist within the index tree, at which time the Oracle cost-based optimizer has a choice of either reading through the index tree nodes to pull the information in sorted order or invoke an index fast full scan, which will read the table in the same fashion as a full table scan, using sequential prefetch (as defined by the db_file_multiblock_read_count parameter). The multiblock read facility allows Oracle to very quickly scan index blocks in linear order, quickly reading every block within the index tablespace. Listing C includes an example of the syntax to create an IOT.


Listing C


CREATE TABLE emp_iot (
emp_id number,
ename varchar2(20),
sal number(9,2),
deptno number,
CONSTRAINT pk_emp_iot_index PRIMARY KEY (emp_id) )
ORGANIZATION index
TABLESPACE spc_demo_ts_01
PCTHRESHOLD 20 INCLUDING ename;
