السلام عليكم ورحمة الله وبركاته



ممكن مساعدتي في رسم



E-R Diagram



لهذه الاسئلة ؟

.1



Design ER Model for part of a Bank databases. The bank has multiple Branches, and each branch can have multiple accounts. Each customer can has one







account or more; or other services.



.2



Design ER Model for Hospital databases. Each Doctor is described by Doc ID, Phone, address, and specialization. Each doctor is allowed to work in only

one department. Each department is described by Dept no, Name, and is supervised by a doctor. Each patient is described by Card number, name, address, and phone. Each patient is assigned to one or more department. It’s required to keep track each admission date. Each lab is described by LabNo, name. It’s



required to keep track any lab service that may be done to the patient



.3

Design ER Model for a library to manage data of books. The library contains books which are described by an ISBN, Title, Specialization. Each Book is published by one Publisher and written by many Authors. A publisher is described by name, ID, Address, Fax and Phone number. An author is described by name, ID, Address, Fax and Phone number. Each author writes many books.

السلام عليكم ورحمة الله



M_AUSTRALIA



رجاء إعادة كتابة موضوعك في منتدى تحليل النظم

حتى تتم المتابعه مع الأخوة الأعضاء

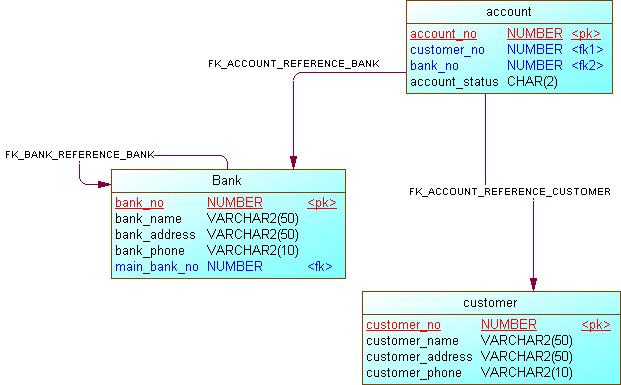

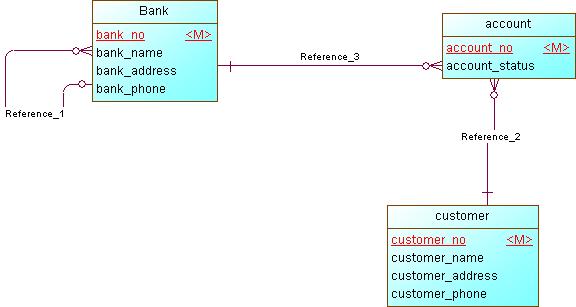

اقتراح ERD  للحالة الأولى bank

صور مصغرة مرفقة

•
•

• أعجبني هذا
