الأخوة / الأخوات الأعضاء..
كثرت الأسئلة مؤخرا عن كيفية تشغيل البرنامج على الشبكة، وإليكم الخطوات:

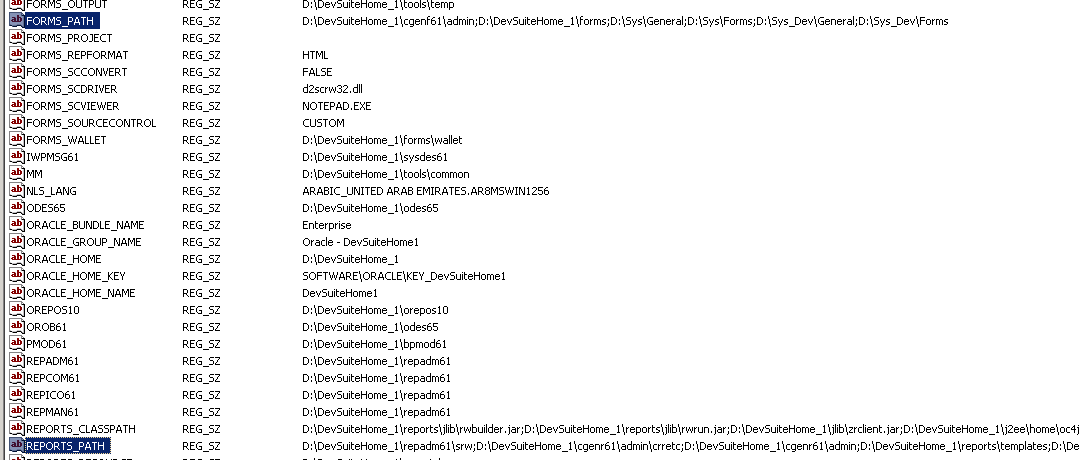

1- تعريف Forms + Report Path in the Registry.


2- تعديل ملف Env الموجود في المسار : D:\DevSuiteHome_1\forms\server
قارن بين الملف الموجود لديك والملف التالي، وأضف الـ Paths المطلوبة:

# $Id: default.env 14-apr-2005.13:22:43 pkuhn Exp $
# default.env - default Forms environment file, Windows version
#
# This file is used to set the Forms runtime environment parameters.
# If a parameter is not defined here, the value in the Windows registry
# will be used. If no value is found in the registry, the value used will
# be that defined in the environment in which the servlet engine (OC4J
# or JServ) was started.
#
# NOTES
# 1/ The Forms installation process should replace all occurrences of
#	<percent>FORMS_ORACLE_HOME<percent> with the correct ORACLE_HOME
#	setting, and all occurrences of <percent>O_JDK_HOME<percent> with
#	the location of the JDK (usually $ORACLE_HOME/jdk).
#	Please make these changes manually if not.
# 2/ Some of the variables below may need to be changed to suite your needs.
#	Please refer to the Forms documentation for details.
#
ORACLE_HOME=D:\DevSuiteHome_1

 #
 # Search path for Forms applications (.fmx files, PL/SQL libraries)
 # If you need to include more than one directory, they should be semi-colon
 # separated (e.g. c:\test\dir1;c:\test\dir2)
 #
 FORMS_PATH=D:\DevSuiteHome_1\forms;D:\DevSuiteHome_1\forms\webutil;D:\Sys\Forms;D:\Sys\General

 # webutil config file path
 WEBUTIL_CONFIG=D:\DevSuiteHome_1\forms\server\webutil.cfg

 # Disable/remove this variable if end-users need access to the query-where
 # functionality which potentially allows them to enter arbitrary SQL
 # statements when in enter-query mode.
 FORMS_RESTRICT_ENTER_QUERY=TRUE

 #
 # The PATH setting is required in order to pick up the JVM (jvm.dll).
 # The Forms runtime executable and dll's are assumed to be in
 # D:\DevSuiteHome_1\bin if they are not in the PATH.
 # In addition, if you are running Graphics applications, you will need
 # to append the following to the path (where <Graphics Oracle Home> should
 # be replaced with the actual location of your Graphics 6i oracle_home):
 #
 # ;<Graphics Oracle Home>\bin;<Graphics Oracle Home>\jdk\bin
 #

 PATH=D:\DevSuiteHome_1\jdk\bin;D:\DevSuiteHome_1\jdk\jre\bin\classic;D:\DevSuiteHome_1\jdk\jre\bin;D:\DevSuiteHome_1\jlib;D:\DevSuiteHome_1\jre\1.4.2\bin\client;D:\DevSuiteHome_1\jre\1.4.2\bin;D:\DevSuiteHome_1\jdk\jre\bin\client
 #
 # Settings for Graphics
 # -------------------------------
 # NOTE: These settings are only needed if Graphics applications
 # are called from Forms applications. In addition, you will need to
 # modify the PATH variable above as described above.
 #

#
# Please uncomment the following and put the correct 6i
# oracle_home value to use Graphics applications.
#
#ORACLE_GRAPHICS6I_HOME=<your Graphics 6i oracle_home here>

#
# Search path for Graphics applications
#
#GRAPHICS60_PATH=

 #
 # Settings for Forms tracing and logging
 # -----------------------------------------------
 # Note: This entry has to be uncommented to enable tracing and
 # logging.

#FORMS_TRACE_PATH=<FORMS_ORACLE_HOME>\forms\server


 #
 # System settings
 # ---------------
 # You should not normally need to modify these settings
 #
 FORMS=D:\DevSuiteHome_1\forms

 #
 # Java class path
 #   This is required for the Forms debugger
 #   You can append your own Java code here)
 # frmsrv.jar, repository.jar and ldapjclnt10.jar are required for
 # the password expiry feature to work(#2213140).
 #
 CLASSPATH=D:\DevSuiteHome_1\j2ee\OC4J_BI_Forms\applications\formsapp\formsweb\WEB-INF\lib\frmsrv.jar;D:\DevSuiteHome_1\jlib\repository.jar;D:\DevSuiteHome_1\jlib\ldapjclnt10.jar;D:\DevSuiteHome_1\jlib\debugger.jar;D:\DevSuiteHome_1\jlib\ewt3.jar;D:\DevSuiteHome_1\jlib\share.jar;D:\DevSuiteHome_1\jlib\utj.jar;D:\DevSuiteHome_1\jlib\zrclient.jar;D:\DevSuiteHome_1\reports\jlib\rwrun.jar;D:\DevSuiteHome_1\forms\java\frmwebutil.jar;D:\DevSuiteHome_1\forms\java\icons.jar;D:\DevSuiteHome_1\jlib\zrclient.jar;D:\DevSuiteHome_1\reports\jlib\rwrun.jar;D:\DevSuiteHome_1\forms\java\jacob.jar;D:\DevSuiteHome_1\forms\java\frmall.jar;D:\DevSuiteHome_1\jdk\jre\lib\rt.jar
#local=sale
FORMS_PATH=C:\WINDOWS\Fonts;D:\Sys\GENERAL;D:\Sys\forms;D:\Sys\GENERAL\icons
REPORTS_PATH=C:\WINDOWS\Fonts;D:\Sys\GENERAL;D:\Sys\Reports

FORMS_MMAP=TRUE

3- في الملف Formwebs أضف Config ليتم من خلالها استدعاء البرنامج الخاص بك، مثلا:

[My_Apps]
WebUtilArchive=frmwebutil.jar,jacob.jar
WebUtilLogging=off
WebUtilLoggingDetail=normal
WebUtilErrorMode=Alert
WebUtilDispatchMonitorInterval=5
WebUtilTrustInternal=true
WebUtilMaxTransferSize=16384
baseHTMLjinitiator=webutiljini.htm
baseHTMLjpi=webutiljpi.htm
form=Sale_Log.fmx
userid=sale/sale@saledev
width=100%
height=100%
separateFrame=True
splashScreen=no
background=
lookAndFeel=Oracle
colorScheme=blue
logo=no
codebase=/forms/java
imageBase=CodeBase
archive_jini=frmall_jinit.jar;icons.jar; mail.jar; activation.jar ;SendMail.jar;chat.jar
archive=frmall.jar; icons.jar; laf_902.jar; laf_1012.jar; laf_10123.jar; laf_11112.jar; dynamicmenu.jar; Calculator.jar;mail.jar; activation.jar ;SendMail.jar;chat.jar
baseHTMLJInitiator=basejpi.htm
jpi_mimetype=application/x-java-applet;version=1.6
jpi_classid=clsid:CAFEEFAC-0016-0000-0021-ABCDEFFEDCBA
workingDirectory=D:\Sys_Dev
envFile=saledev.env

ويجب التغيير حسب متطلبات البرنامج لديك مثلا اسم الداتا بيز و اسم شاشة الدخول واسم ملف env....الخ.

4- ويتم إستدعاء البرنامج من خلال لينك يتم تحديد فيه إسم السيرفر والـ Config التي تم تعريفها في ملف Formsweb.

http://Server_Name.com:8889/forms/frmservlet?config=My_Apps

بالتوفيق.

شكرا جزيلا وجزاك الله خير على هده المعلومات
